Continuous Hydraulic Tube Puller

We are offering Continuous Hydraulic Tube Puller
3/8"- 4" O.D.


Serrating/ Grooving Tool-'NW' Series
Features :
  • Pulling gun communicates with powerpack via DC remote control. This ensures safely and eliminates the need of    electrical cord between pump and gun that ohter manufacturers provide.
  • Available with a choice of Electric - TPP System or Pneumatic - PPP System for hazardous, explosive working    environments.
  • Microprocessor controls on powerpack and gun ensure trouble free life.
  • Removes tube without any damage to tube sheet.
  • Low setup time and ease of operation.
  • High power & High speed automatic cycling, for highest speed of pull available worldwide.
  • Auto switchover from low pressure high flow to high pressure low flow on load and again back to low pressure high     flow when load is released.
  • Automatic slow start feature to minimize risk of breaking tubes and to conserve consumables.
  • Compact design of Powerpack and Gun.
  • Interchangeble pulling guns with same Powerpack. 15 ton gun for light duty high speed work, 30 ton gun for heavy     duty tube pulling and 45 ton gun for tubes upto 3" O.D.
  • Totally stainless steel construction body of powerpack for longer corrosion free life.
  • Pulls up to 3" OD tubes continuously, pulls up to 4" O.D. stub.
  • Low maintenance cost and worldwide availability of components.
  • Significant saving of time and money over conventional system.
  • Unit is portable with handle and mounted on four wheels for easy handling.
  • Unit wil pull tubes continuously through the gun effortlessly, needing only one man for operation.
------------------------------------------------------------------------------------------------------------------------------------------------------------

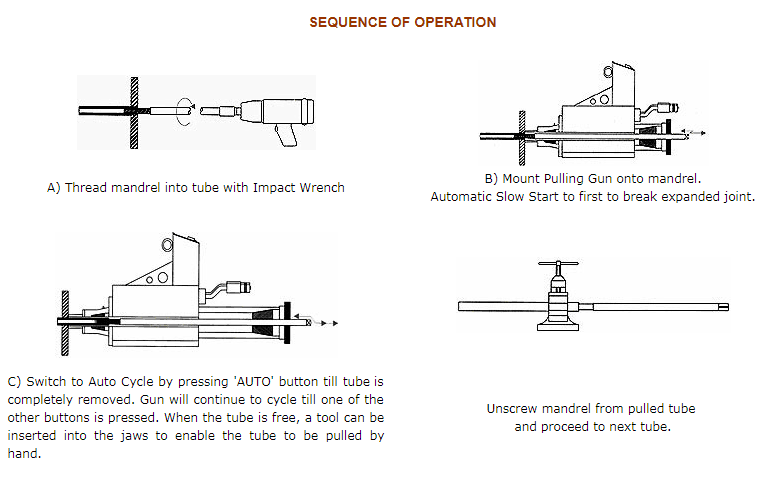

Sequence of Operation

Thread mandrel into tube with Impact Wrench
Mount Pulling Gun onto mandrel
A) Thread mandrel into tube with Impact Wrench B) Mount Pulling Gun onto mandrel.
Automatic Slow Start to first to break expanded joint.

Tube Puller
Tube Puller
C) Switch to Auto Cycle by pressing 'AUTO' button till tube is completely removed. Gun will continue to cycle till one of the other buttons is pressed. When the tube is free, a tool can be inserted into the jaws to enable the tube to be pulled by hand.
Unscrew mandrel from pulled tube
and proceed to next tube.
------------------------------------------------------------------------------------------------------------------------------------------------------------
Tube Pulling Powerpack - Specifications
Tube Pulling Powerpack
Model
Motor
Volts / Phase
Power
Oil Tank Capacity
Net Wt.
Dim.
Air Supple
Hyd. Hoses Size x Length
hp
litrs.
Kgs.
mm
inch x mtrs.
TPP-50
Siemens
415/3
5
90
220
1200 x 750 x 990
-
1/2" x 5 & 3/4" x 5
TPP-75
Siemens
415/3
7.5
138
270
1225 x 775 x 1015
-
1/2" x 5 & 3/4" x 5
TPP-30
Siemens
230/1
3
12
42
500 x 410 x 750
-
1/2" x 5 & 3/4" x 5
PPP-50 (Pneumatic)
Gast
-
9
90
220
700 x 560 x 480
180CFM AT 7 BAR
1/2" x 5 & 3/4" x 5
Note : Max. Working Pressure 350 bar. All Powerpacks supplied with 5mtr long hydraulic hoses.
------------------------------------------------------------------------------------------------------------------------------------------------------------
Hydraulic Tube Pulling Guns - Specifications
Tube Pulling Powerpack
Gun Model
Pulling Capacity
Max. Tube O.D. Thru Gun
Stub Pulling Capacity
Weight
Free Pulling Speed (meter/mim) with
tons
inch
inch
kgs.
lbs.
TPP-50
TPP-75
TPP-30
PPP-50
HPG-15
15
1
1.1/2
26
57
5.2
8.4
1.8
5.6
HPG-30
30
1.1/2
3
38
84
3.0
3.7
2.4
3.5
HPG-45
45
3
4
78
172
2.0
2.7
2.0
2.3
Note : All pulling guns are supplied with Forward, Reverse, and Auto Cycle Switches.
